B07 - Process chaining
Complex processes can be put together on the basis of the functiogram.
Attempt: 8
Where are we in the three-step-model?
Now we have reached the end of block B. Our final task is to combine our operational steps to a total process that functions well.

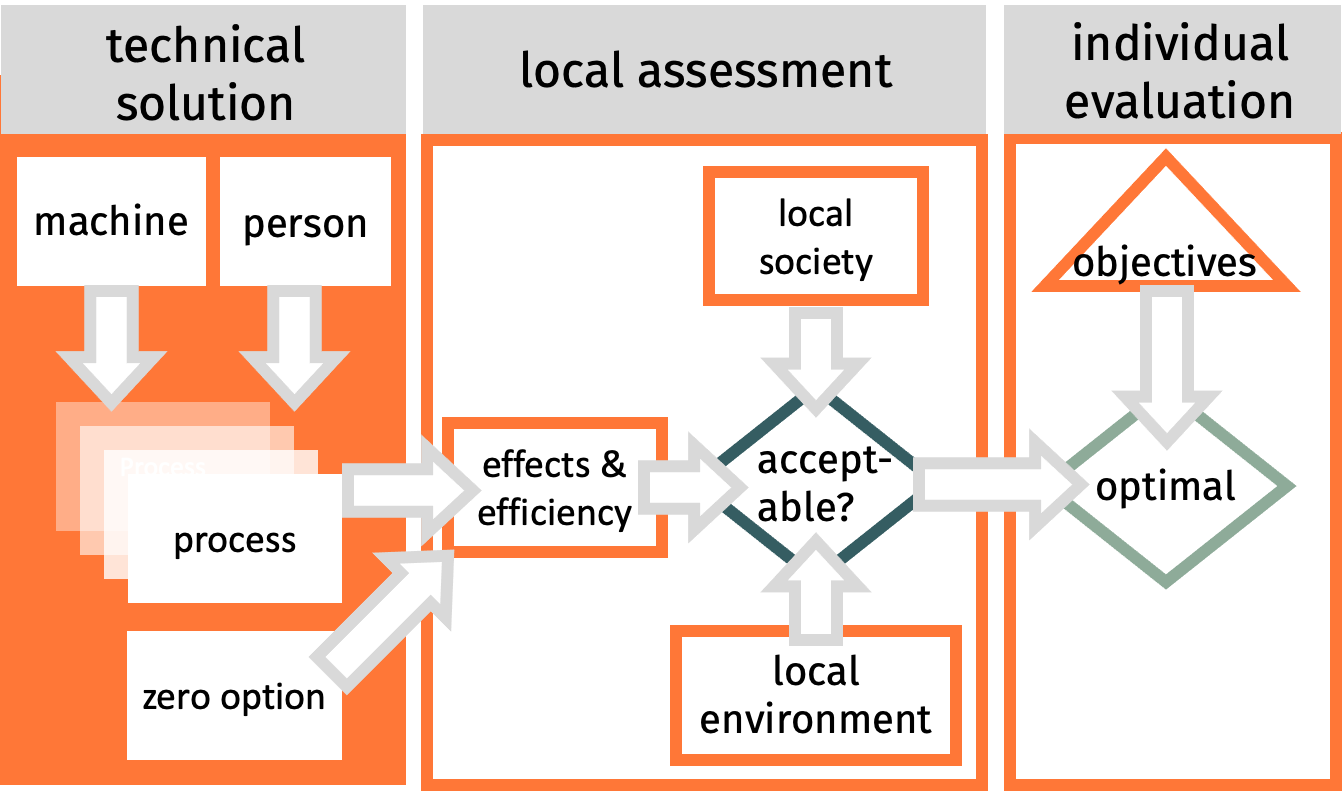

Fig. B07-01: The actual position in the three step model of technodiversity; finding technical solutions that fit
