B06 - The functiogram
A form of representation is found with which each timber harvesting process can be clearly mapped.
Attempt: 7
Where are we in the three-step-model?
Now we are here.
In this lecture we look for a way to visualize the working method in a way that on one hand is easy to understand and to "read" and on the other hand is precise enough to make a difference from other working methods.
This leads to the "functiogram", a specific model that has been invented during the preparations for the "Technodiversity" tool. In between, this model is well accepted by forest engineers and has become something like a standard in forest literature.

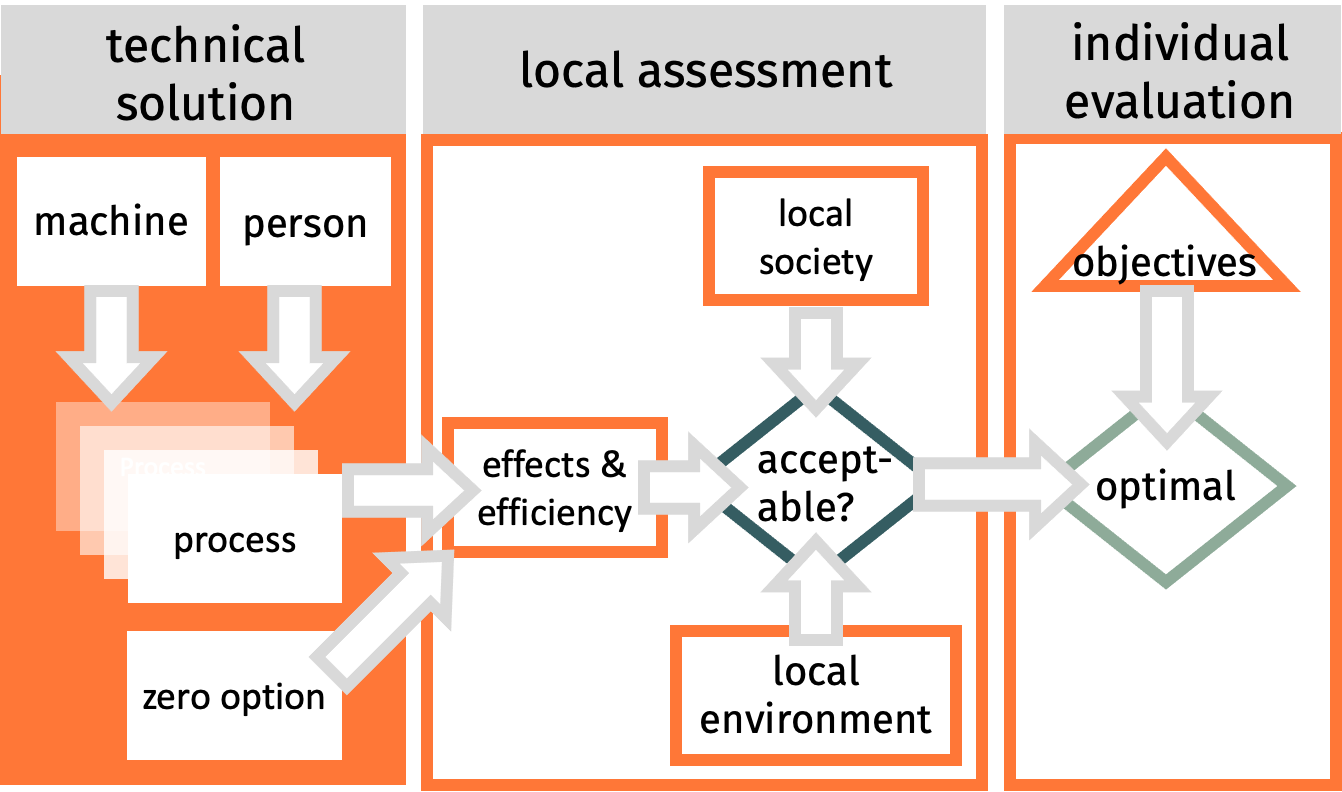

Fig. B06-01: The actual position in the three step model of technodiversity; finding technical solutions that fit
